Lab Analyzer Interface

The BITLIMS Lab Analyzer Interface is a robust and intelligent integration module designed to seamlessly connect laboratory analyzers with the BITLIMS platform. It enables fully automated communication between instruments and the LIMS, eliminating manual data entry, reducing errors, and significantly improving laboratory efficiency.

BITLIMS LabWorkFlow.png" alt="">

The Lab Analyzer Interface also includes advanced features like result verification, error flagging, audit trail logging, and quality control tracking to support regulatory compliance and maintain high data integrity. Through centralized dashboards, laboratory teams can monitor instrument performance, track sample status, and ensure timely reporting of accurate results.

By streamlining workflows and enhancing connectivity, the BITLIMS Lab Analyzer Interface empowers laboratories to deliver faster turnaround times, improved accuracy, and a smarter, more automated testing environment.

BITLIMS supports two types of laboratory instrument interfaces to ensure seamless connectivity and data automation:

Unidirectional Interface –

Bidirectional Interface –

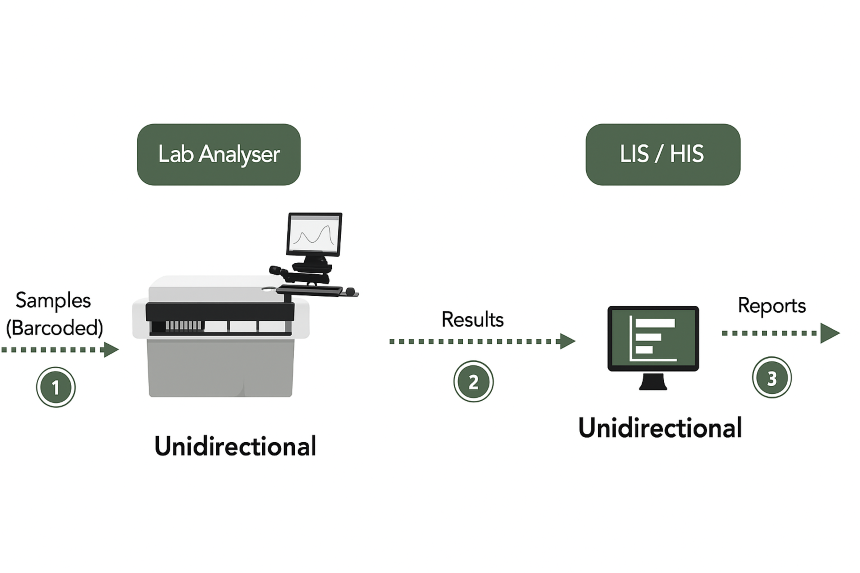

Unidirectional Interface

A Unidirectional Interface is a one-way communication link between a laboratory instrument and a laboratory information system. In this setup, data flows in only one direction—from the analyzer to the system. The system does not send any commands, test orders, or worklists back to the instrument.


How It Works


  • 1. Sample is loaded on the analyzer.

  • 2. Analyzer runs the test.

  • 3. Test results are generated.

  • 4. Analyzer sends results directly to LIS/LIMS.

  • 5. LIS/LIMS receives, processes, and stores the results.

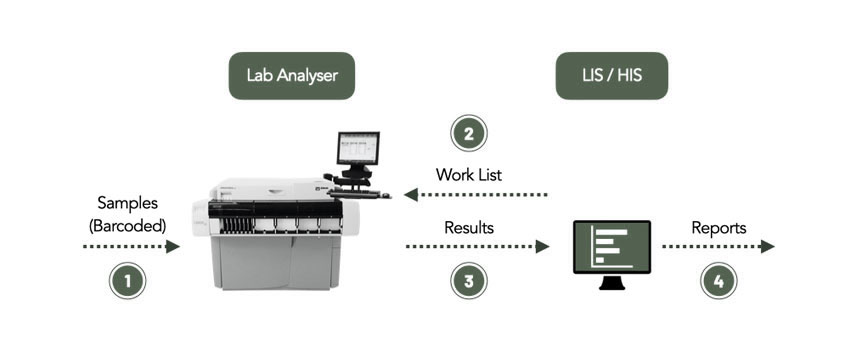

Bidirectional Interface

A Bidirectional Interface is a two-way communication link between a laboratory instrument and a laboratory information system (LIS/LIMS). In this setup, data flows both ways — the system sends test orders to the instrument, and the instrument returns results automatically after analysis. It provides a higher level of automation, accuracy, and efficiency in laboratory workflows by eliminating manual entry at both ends.


How It Works


  • 1. Patient samples with barcodes are loaded into the analyzer for identification and testing.

  • 2. Test Order Sent by LIS/HIS/LIMS to the analyzer.

  • 3. The analyzer performs the requested Sample tests automatically based on the received order.

  • 4. After analysis, the instrument sends test results back to the LIS/HIS/LIMS. Test results are generated.

  • 5. The system verifies, stores, and flags any abnormal results for review.

  • 6. Finally validated results are compiled into reports.

List Of Interfaced Lab Equipments

# Name/Model of the Equipment Communication Mode
1 Abacus 3 Unidirectional
2 Abacus 5 Unidirectional
3 Abacus_380 Unidirectional
4 Abbott Alinity C Bidirectional
5 Abbott Architect C4000 Bidirectional
6 Abbott Architect plus-i1000sr Bidirectional
7 Abbott Architect-CI8200 Bidirectional
8 ABL9-ABG Unidirectional
9 ABX Micros 60 Unidirectional
10 ABX Micros ES 60 Unidirectional
11 Acculyte 5P Unidirectional
12 ACL ELITE Bidirectional
13 ACL Top-500 Bidirectional
14 ADG 2260 Bidirectional
15 Agappe Mispa Clinia Unidirectional
16 Arthitect Abbott i1000 Unidirectional
17 Aspen-5000 Unidirectional
18 BackMan Coulter AU-5800 Unidirectional
19 Bact/Alert3D Unidirectional
20 BD Bactec FX120 Unidirectional
21 BD Phoenix-M50 Unidirectional
22 Bd-Bectec FX 40 Unidirectional
23 BE Hemax_530AL Unidirectional
24 Beckman Coulter Access2 Bidirectional
25 Beckman Coulter AU 5800 Bidirectional
26 Beckman Coulter DxH-600 Unidirectional
27 Beckman coulter DXH-800 Bidirectional
28 Beckman coulter DXI 800 Bidirectional
29 Beckman Coulter LH-750 Unidirectional
30 Beckman DXC-700 Unidirectional
31 Beckman DXC-700 Bidirectional
32 Beckman DXC-700 Bidirectional
33 Beckman_coulter AU-480 Bidirectional
34 Beckman_coulter_DxH500 Unidirectional
35 Bensphera H33S (Avanitor ) Unidirectional
36 Biolis_50i Bidirectional
37 Biorad D10 Unidirectional
38 BioSystem BA 400 Bidirectional
39 Biosystem BA 400 Bidirectional
40 Canon TBA 120FR Bidirectional
41 Celltac ES MEK-7300k Unidirectional
42 Celltack α MEK-6420k Unidirectional
43 Chromate Unidirectional
44 COBAS B 221 Unidirectional
45 Cobas6000 Bidirectional
46 Cobas-c501 Unidirectional
47 CounCell-21 Unidirectional
48 Diatron CellTech Plus CT Unidirectional
49 Diatron Pictus-500 Bidirectional
50 Diatron Pictus-700 Bidirectional
51 Diesse Cube-30 Touch Unidirectional
52 Elite Erba 580 Unidirectional
53 Elitech Selectra PRO-M Bidirectional
54 Erba Unidirectional
55 Erba Chem 7 Unidirectional
56 ERBA ECL760 Unidirectional
57 ERBA EM 360 Bidirectional
58 Erba H360 Unidirectional
59 Erba H560 Unidirectional
60 Erba HbVario Unidirectional
61 Erba Laura Strips Unidirectional
62 Erba_ECL_105 Unidirectional
63 Erba_ECL_412 Unidirectional
64 Erba_EM_200 Unidirectional
65 Erba_EM_360 Unidirectional
66 Erba_XL-640 Bidirectional
67 Erma-ECL120 Unidirectional
68 ERMA-PCE525 Unidirectional
69 FA20EBITG0777(SD_Biosenser) Unidirectional
70 Falcon 260 Unidirectional
71 Fb200_HETO Unidirectional
72 Freedom EVO75 Unidirectional
73 Genexpert Bidirectional
74 Genrui BA 600 Unidirectional
75 Genrui KT-6390 Unidirectional
76 Genrui KT-6400 Unidirectional
77 HDC Lyte Unidirectional
78 HDC LYTE Unidirectional
79 Hemax330 Unidirectional
80 Horiba ABX Pentra 60 C Unidirectional
81 Horiba_Yumizen_H550_Byculla Unidirectional
82 HumaStar 200 Unidirectional
83 iChroma Unidirectional
84 ImmuniteNWR Unidirectional
85 Konelab Prime-60i Bidirectional
86 Laura Smart Unidirectional
87 LGR_Hitachi Modular 800 Unidirectional
88 Lifotronic GH900 Plus Unidirectional
89 Lifotronic(H8) Client Unidirectional
90 Lisa scan Unidirectional
91 Lisa XL-D002 Bidirectional
92 Matrix AUTOLOMO - A 2000 Plus Bidirectional
93 Medonic-M Series Unidirectional
94 Meril AutoQuant-200 Bidirectional
95 Meril CelQuant 3 Prime Unidirectional
96 Metro Lab 2300 PLUS File Reading
97 Mindray BC -5000 client Unidirectional
98 Mindray BC 5000 Server Unidirectional
99 Mindray BC 5130 client Unidirectional
100 Mindray BC 5150 Client Unidirectional
101 Mindray BC 5150 Server Unidirectional
102 Mindray BC 6000 client Unidirectional
103 Mindray BC 6000 Server Unidirectional
104 Mindray BC 6200 client Unidirectional
105 Mindray BC 6200 Server Unidirectional
106 Mindray BC 780 Unidirectional
107 Mindray BS 390 Bidirectional
108 Mindray BS-230 Bidirectional
109 Mindray BS-240 Bidirectional
110 Mispa -i2 Unidirectional
111 Mispa Viva Unidirectional
112 Ms4se Unidirectional
113 NANO H5 Bidirectional
114 Olympus AU400 Bidirectional
115 Olympus_AU400 Bidirectional
116 Orinalyser_U500 Unidirectional
117 Prolyte Byculla Unidirectional
118 QDX 100 PRO Unidirectional
119 QDX urilyser Unidirectional
120 Radiometer ABL 800 basic (ABG) Unidirectional
121 Randox Imola Bidirectional
122 Randox RX - Modena Bidirectional
123 Roche Cobas c311 Bidirectional
124 Roche Cobas e411 Bidirectional
125 Sensacore ST200 Aqua Unidirectional
126 Sensacore ST200 CC Unidirectional
127 Sensacore ST200 PRO Unidirectional
128 Sfri Hemix 5-60 Unidirectional
129 Siemens Advia 560 Unidirectional
130 Siemens Advia centaur XPT Bidirectional
131 Siemens Advia360 Unidirectional
132 Siemens Atalika Unidirectional
133 Siemens ATELLICA CH930 Bidirectional
134 Siemens ATELLICA IM-1300 Bidirectional
135 Siemens Attalica IM-1600 Bidirectional
136 Siemens Clinitek Advantus Unidirectional
137 Siemens Immulite 1000 Unidirectional
138 Siemens RapidLab 340_EX Unidirectional
139 Snibe maglumi X3 Unidirectional
140 Snibe Maglumi-600 Bidirectional
141 Snibe Maglumi-800 Bidirectional
142 Sphera 200 Unidirectional
143 Spincell_Spinreact Unidirectional
144 Sta_satelite_max_Byculla Unidirectional
145 Stago Compact Max3 Bidirectional
146 Stagoo_startMax Unidirectional
147 SweLab Unidirectional
148 Sys 200 Pro Bidirectional
149 Sysmex 800i Unidirectional
150 Sysmex BX 4000 Bidirectional
151 Sysmex CA600 Unidirectional
152 Sysmex CS 1600 Bidirectional
153 Sysmex KT21 Unidirectional
154 Sysmex XN 1500 Bidirectional
155 Sysmex XN1000 Bidirectional
156 Sysmex XN-1000 Bidirectional
157 SYSMEX XN-L 550 Bidirectional
158 Sysmex XP100 Unidirectional
159 Sysmex XP300 Unidirectional
160 Sysmex XT-2000i Unidirectional
161 SysmexXN350 Unidirectional
162 SysmexXN550 Unidirectional
163 Tecom Tc6060 Unidirectional
164 Toshiba TBA 120FR Bidirectional
165 Tosoh HLC Unidirectional
166 Tulip 3i Unidirectional
167 Tulip Coralab Touch Unidirectional
168 Tulip Evolution 3000 Unidirectional
169 Tulip_Councell-23 Unidirectional
170 Turbo_Chem-100 Unidirectional
171 UriSed Mini Unidirectional
172 Urisys 1100 Unidirectional
173 Urit_3020 Unidirectional
174 Urometer 120 Unidirectional
175 Urometer720 Unidirectional
176 Vector-Vec5diff Unidirectional
177 Vidas Unidirectional
178 Vitek2 Unidirectional
179 Vitros 3600 Bidirectional
180 Vitros 5600 Bidirectional
181 Vitros CP(250) Unidirectional
182 Vitros ECIQ Unidirectional
